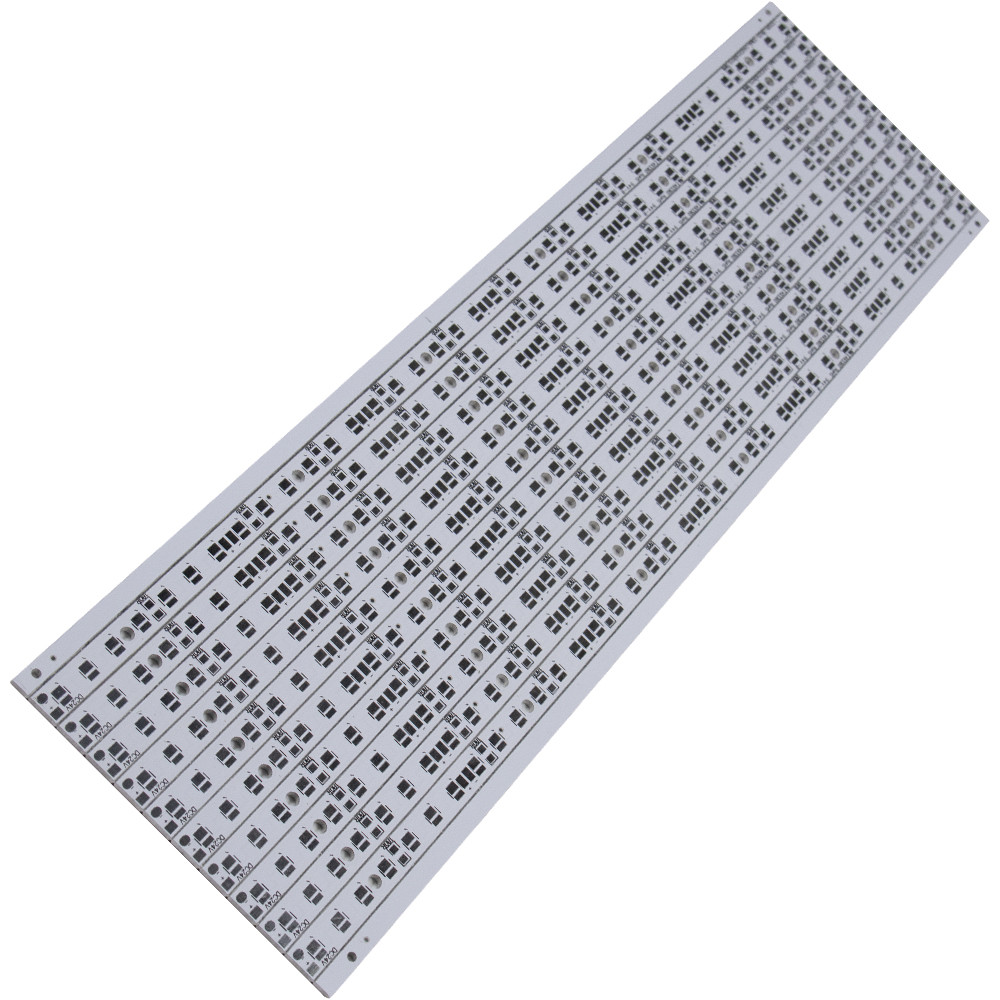

Aluminum AC220V LED Printed Circuit Board Round Square Custom Dime

Description and Application:

Bergquist Aluminum base copper-clad laminate have excellent flame retardant, high mechanical strength, dimensional stability etc. Especially it has very good heat sink, electromagnetic shielding and solder float.

It's widely used for the modifier and sparker on fire for motorcycle and mobile, power LED, sound box, power supply module and acoustics shielding system etc.

Bergquist HT-04503 Bergquist MP-06503 Bergquist HT-07006 Aluminium PCB, Aluminium printed circuit board, Aluminum PCB, Bergquist Aluminium base PCB, Bergquist Aluminium PCB, IMS PCB, LED PCB, Metal Core PCB, MCPCB, MPCB, High thermal conductivity aluminum pcb, aluminium based copper-clad pcb board, Bergquist T-clad Mcpcb, Bergquist Aluminum Clad Laminate PCB

Metal core PCB and standard FR-4 are commonly used circuit board materials in conjunction with Power LEDs. Oneseine’s Thermal Clad dielectric is a thin, thermally conductive layer bonded to an aluminum or copper substrate for heat dissipation (see illustration below). The key to Thermal Clad’s superior performance lies in its dielectric layer.This layer offers electrical isolation with high thermal conductivity and bonds the base metal and circuit foil together. Other manufacturers use standard prepreg as the dielectric layer, but prepreg doesn’t provide the high thermal conductivity and resulting thermal performance required to help assure the lowest possible operating temperatures and brightest light output for high-intensity LEDs.
